Bt2 Socket Head Self-Tapping Screws – Fine-Pitch Design

Price range: $0.58 through $0.82

Quantity
SKU: N/A Category: Brand:

Description

Documentation

2D Specification 3D 3D Model

Socket Head Cap Machine Screws (SHCS) Socket Head Cap Machine Screws (SHCS)

Product ID L (mm)

Bolt Length

 D (mm)

Head Diameter

 H (mm)

Head Thickness

 k (mm)

Hexagon Across Flats

 t (mm)

Groove Depth

 Screwdriver Bit
Size
AA191 5 3.5 1.2 1.5 0.7 H1.5

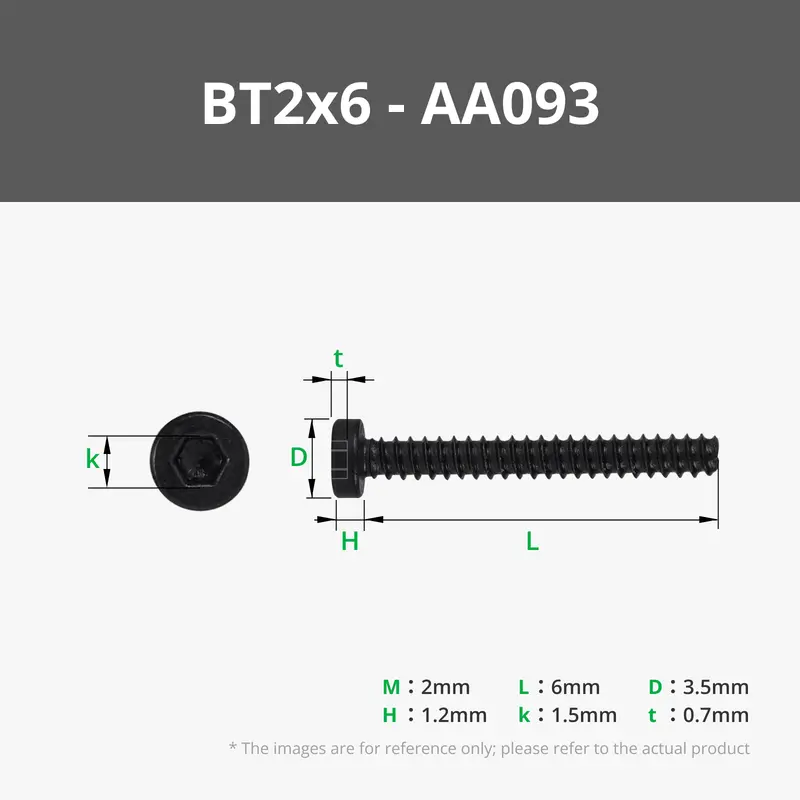

AA093 6 3.5 1.2 1.5 0.7 H1.5
AA094 8 3.5 1.2 1.5 0.7 H1.5
AA192 10 3.5 1.2 1.5 0.7 H1.5
AA095 12 3.5 1.2 1.5 0.7 H1.5
AA193 14 3.5 1.2 1.5 0.7 H1.5
AA196 16 3.5 1.2 1.5 0.7 H1.5
AA194 18 3.5 1.2 1.5 0.7 H1.5
AA097 20 3.5 1.2 1.5 0.7 H1.5
AA098 25 3.5 1.2 1.5 0.7 H1.5

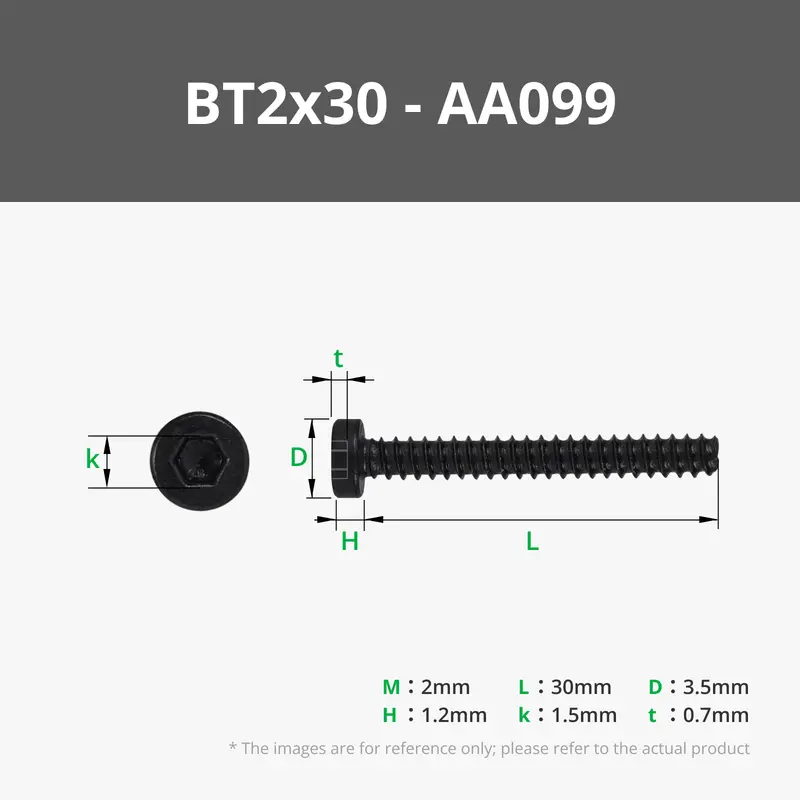

AA099 30 3.5 1.2 1.5 0.7 H1.5

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Forgot the screw specs? Just tap the Screw Gauge for sorting help.

Self-Tapping Screws for 3D Printing

For 3D printed parts, which often have gaps between layers and varying hole sizes, we recommend using BT self-tapping screws. These screws provide moderate torque for insertion, prevent loosening, and can be installed and removed multiple times. Using these screws and matching them with the recommended hole size ensures easy and secure connections for your printed parts, eliminating the need for nuts and avoiding issues like screw loosening or hole shrinkage.

We have included the relevant data for the twisting torque and loosening torque experiments of PLA and PETG material specimens, as well as the recommended hole sizes for design. The model files for testing are available for download at the end of the details page. All test holes are printed perpendicularly to the platform. When designing a bolt bottom hole on the side of the part, it is recommended to use a size one size larger than the recommended size for lying flat to prevent interlayer compression cracking.

.pct_downloadContent .download_svg { width: 30px; } @media (min-width: 640px) { .pct_downloadContent .download_svg { width: 55px; } }

Test Data for Self-Tapping Screws 3D Document for Screws Test

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Surface Treatment Black zinc-nickel alloy plating
Mounting Hole Shape Hex socket
Screw Type Complete thread

Material Carbon steel
Thread Ridge Type Metric coarse
Color Black

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

  • Self-Tapping Screws for 3D Printing

  • Carbon Steel Socket Head Cap Self Tapping Screw (SHCS)

  • Nominal thread: BT1.6~BT3

  • Strength grade: 4.8

  • Type of thread: Metric coarse thread

  • Full thread series

Explore more from our collection.

Additional information

Size

BT2x5 SHCS Self Tapping Screw (20PCS) – AA191, BT2x6 SHCS Self Tapping Screw (20PCS) – AA093, BT2x8 SHCS Self Tapping Screw (20PCS) – AA094, BT2x10 SHCS Self Tapping Screw (20PCS) – AA192, BT2x12 SHCS Self Tapping Screw (20PCS) – AA095, BT2x14 SHCS Self Tapping Screw (20PCS) – AA193, BT2x16 SHCS Self Tapping Screw (20PCS) – AA096, BT2x18 SHCS Self Tapping Screw (10PCS) – AA194, BT2x20 SHCS Self Tapping Screw (10PCS) – AA097, BT2x25 SHCS Self Tapping Screw (10PCS) – AA098, BT2x30 SHCS Self Tapping Screw (10PCS) – AA099
