Countersunk Disc Magnets With Recessed Holes For Flush Installation

Description

Documentation

Specification 3D Model

Product ID	D (mm) Outer Diameter	d (mm) Inner Diameter	W(mm) Thickness

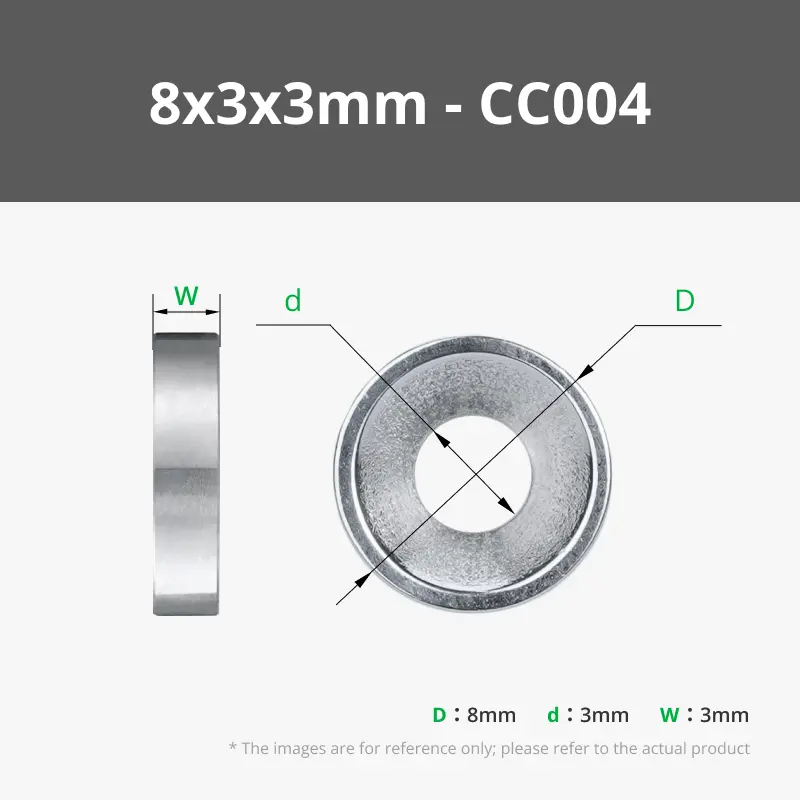

CC004	8	3	3
CC005	10	3	3
CC002	10	4	3
CC001	12	3	3

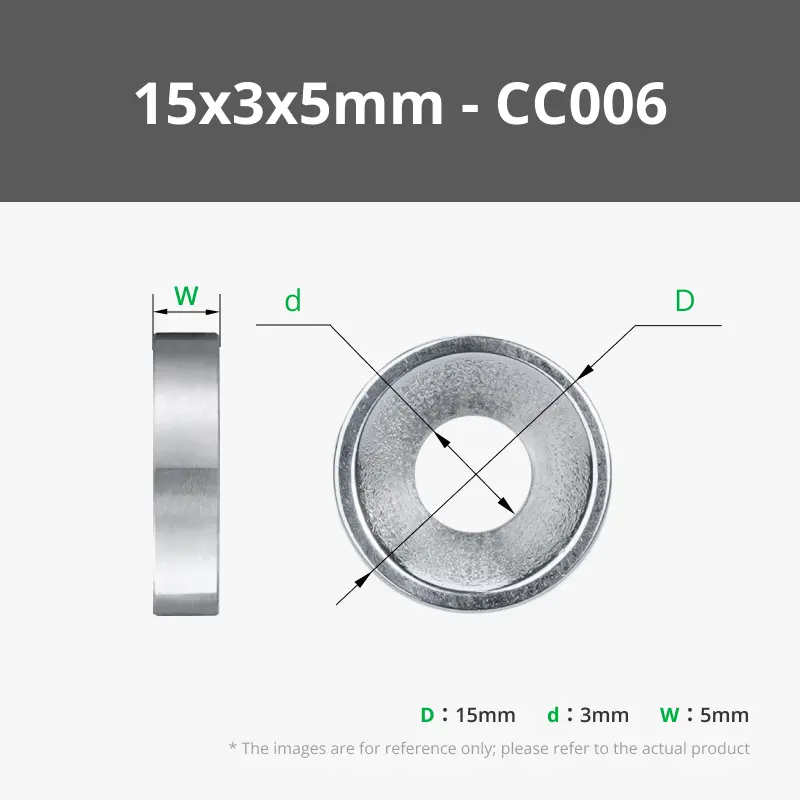

CC006	15	3	5
CC007	20	4	5
CC008	25	5	5

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Mount Type	Magnetic
Direction of Magnetization	Through thickness
Magnet Grade	N35
Max Temperature	80℃

Material	Neodymium magnet
Surface Treatment	Nickel plating
Shape	Countersunk
Color	Silver

    .pct_productFeatureList {        display: flex;        justify-content: flex-start;        align-items: center;        flex-wrap: wrap;        column-gap: 50px;        row-gap: 5px;    }    .pct_productFeatureList li {        padding: 0;    }    @media (min-width: 640px) {        .pct_productFeatureList {            display: flex;            justify-content: center;            align-items: center;            flex-wrap: wrap;            column-gap: 50px;            row-gap: 0px;        }    }

Product Feature

High-Performance Magnetic Strength       |        Corrosion-Resistant Coating       |      The unique countersunk hole design allows for easy mounting with screws
