Introduction
The Dual-Axis Joystick Module is a 2-channel analog input module. It automatically returns to the center. The dual-channel joystick is suitable for use as a control lever in various scenarios where control of both movement speed and direction is required, especially when these movements are interrelated.
For example, in vehicle models, one axis is used to control the moving speed, and the other axis is used to control the steering; or in the model of a tower crane, one axis is used to control the rotation, and the other axis is used to control the distance of the trolley car.
Product Specifications

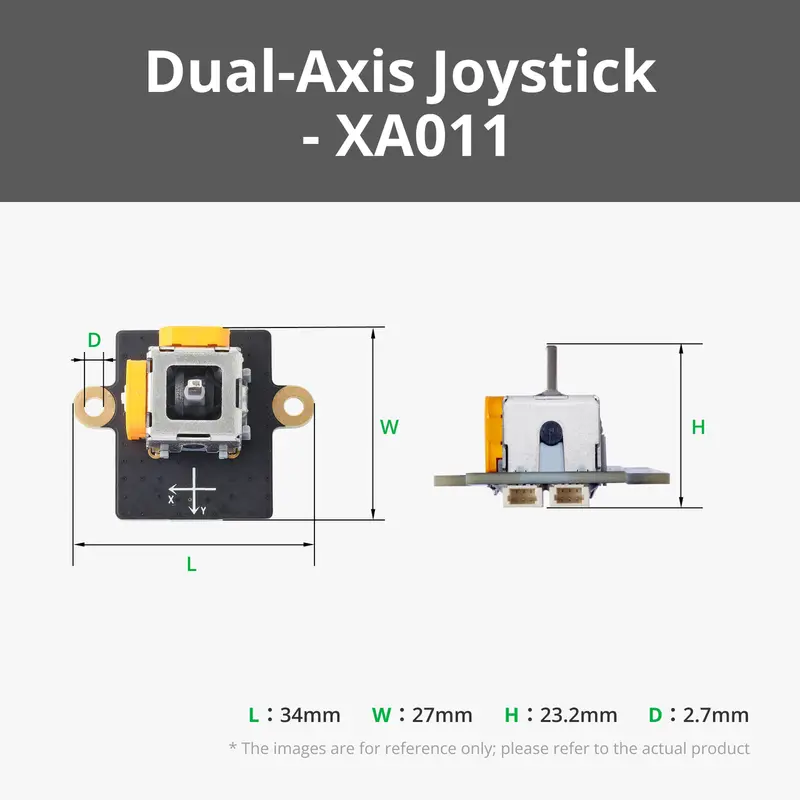

| Product ID | Model | Input Voltage | Output Signal Type | Output Channel | Sensor Type | Resistor | Connector | Weight | Size |
| XA011 | SW312 | 3.3V | ADC | 2CH | Potentiometer | 10kΩ | 3-Pin SH1.0*2 | 6.6g | 34*27mm |
