Overview

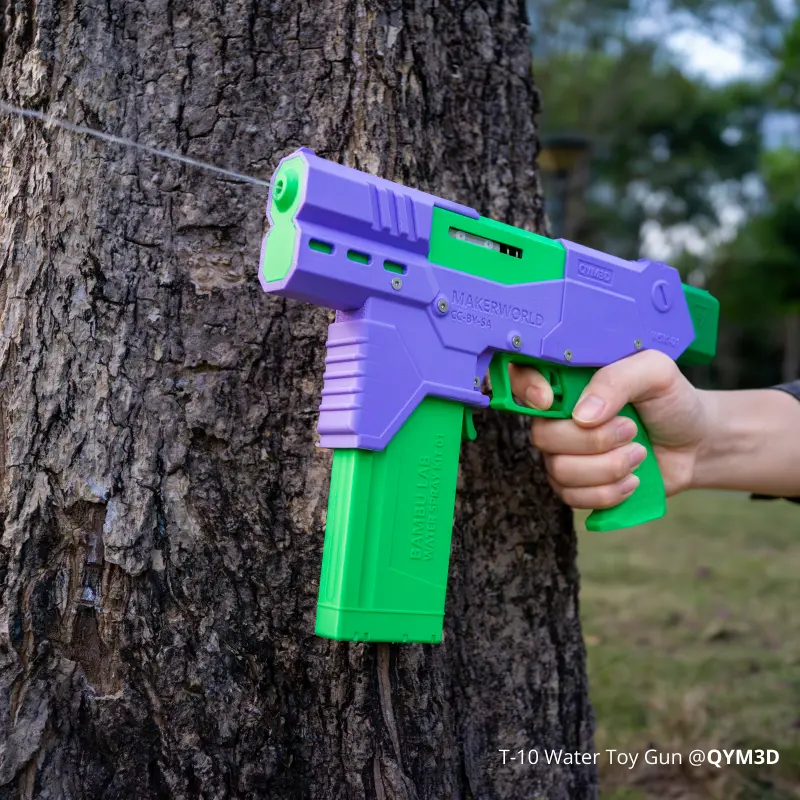

The Electric Water Spray Kit 01 contains all the non-3D printed hardware components necessary to assemble the Electric Water Toy Gun. The electric water gun mechanism allows for continuous shooting, with a pulsing water flow activated by pulling the trigger. The mechanism features a simulated recoil function for added fun. The kit also includes a water pump that automatically draws water from open sources into the tank, reducing the need for users to detach it for refills.

The kit does not include the required silicone tubes; you can purchase the appropriate length based on your specific needs (3x5mm Transparent 2m (1PCS) – RC021). To complete the design, you need to download the model files and 3D print the parts.

In the Box

Item Number	Item Name	Quantity
1	Water Sprayer Gearbox Module – S06	1
2	18650 7.4V 2200mAh Li-ion Battery	1
3	USB Charger for 7.4V 18650 Battery with PH2.0 Connector	1
4	Water Pump	1
5	150mm Y Type PH2.0 Adapter	1

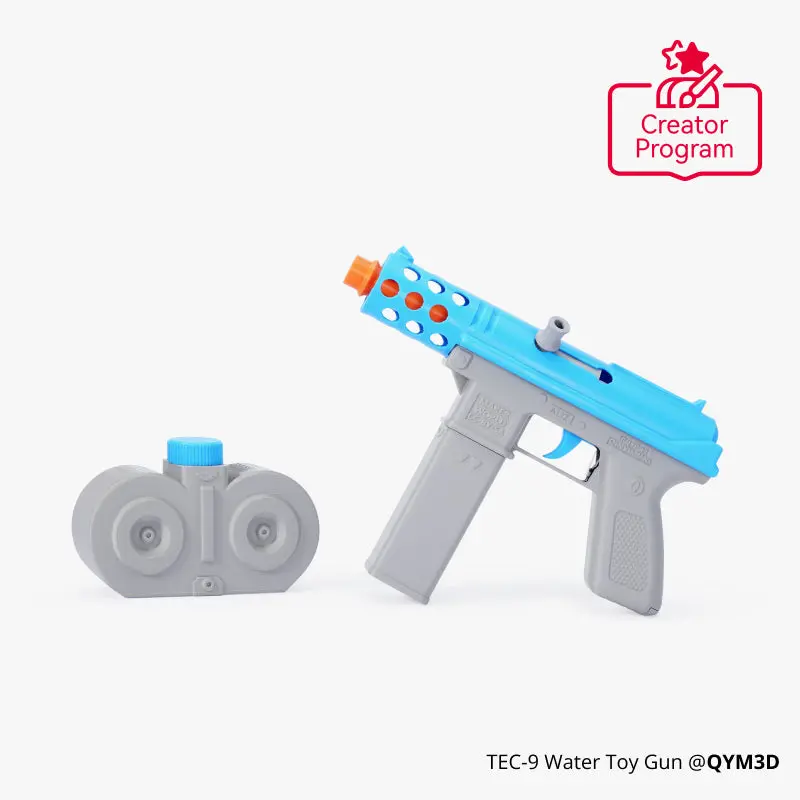

Difference between Electric Water Spray Kit 02  And This Kit

Product	Electric Water Spray Kit 01	Electric Water Spray Kit 02
Size	5.3 x 2.95 x 20.5  CM	3.27 x 2.49 x 15.7 CM
Auto-fill	Yes	No
Voltage	7.4 V	3.7 V
Range	10 M	7-8 M
Rate of Fire	2 round/s	8 round/s
Silicone tube & screw	Purchased separately  3x5mm Transparent 2m (1PCS)	Inclued

Product Specification

Color	Black	Current	1 A+0.5 A (Gearbox+Pump)
Material	Metal and plastic	Voltage	7.4 V
Range	10 m	Packaging Size	87*57*220 mm
Rate of Fire	2 round/s	Packaging Weight	278.5 g

Considerations

• Do not operate the Water Toy Gun without water, it may damage the internal components and render it non-functional.

• The mechanism includes a simulated recoil feature. Please be cautious of the interference between the housing and the recoil slider.

• The switch and battery are not waterproof, do not submerge the kit directly in water.

• The required silicone tube is not included, you can purchase and cut the silicone tube as you need.
