Description

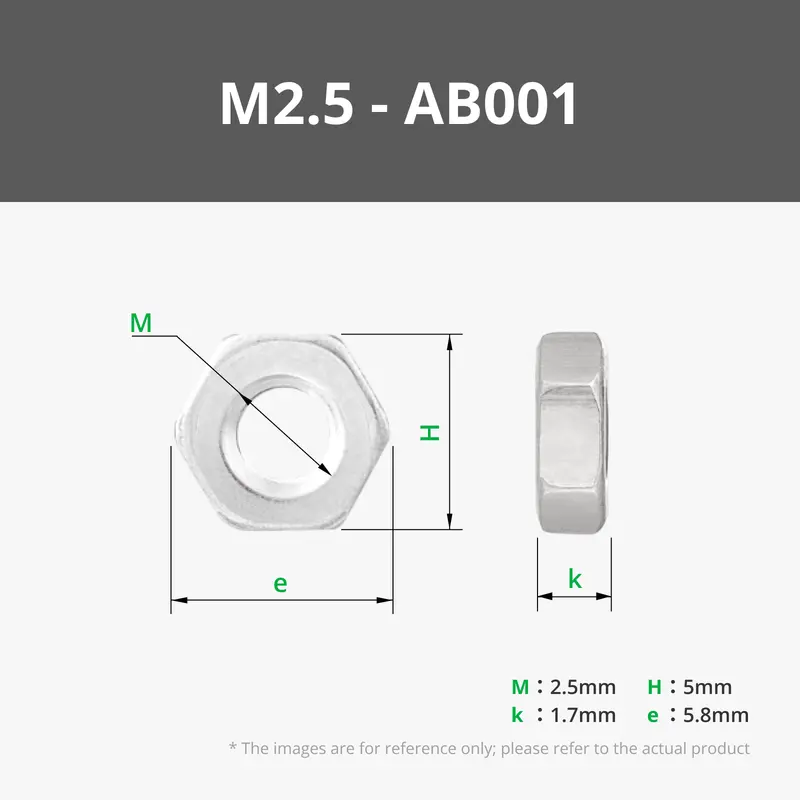

| Product ID | M (mm)
Nominal Diameter |
P (mm)
Thread Pitch |
H (mm)
Wrench Size |
k (mm)
Thickness |
e (mm)
Across Corners |
| AB001 | 2.5 | 0.45 | 5 | 1.7 | 5.8 |
* Compliant with the requirements of GB /T 6170 – 2015 standard [Equivalent standards: ISO 4032 – 2012, ASME/ANSI B 18.2.4.1M – 2007, DIN EN ISO 4032 – 2013]
.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }
Basic Information
| Surface Treatment | No |
| Fastener Type | Hex |
| Quantity | 20 pcs |
| Material | Stainless steel |
| Thread Ridge Type | Metric coarse |
| Package Weight | Silver |
.pct_downloadContent .download_svg { width: 30px; } @media (min-width: 640px) { .pct_downloadContent .download_svg { width: 55px; } }
Downloads
2D Drawing 3D Document
