M2.5 Stainless Steel Socket Head Cap Screws – Precision-Machined Shcs Fasteners

Description

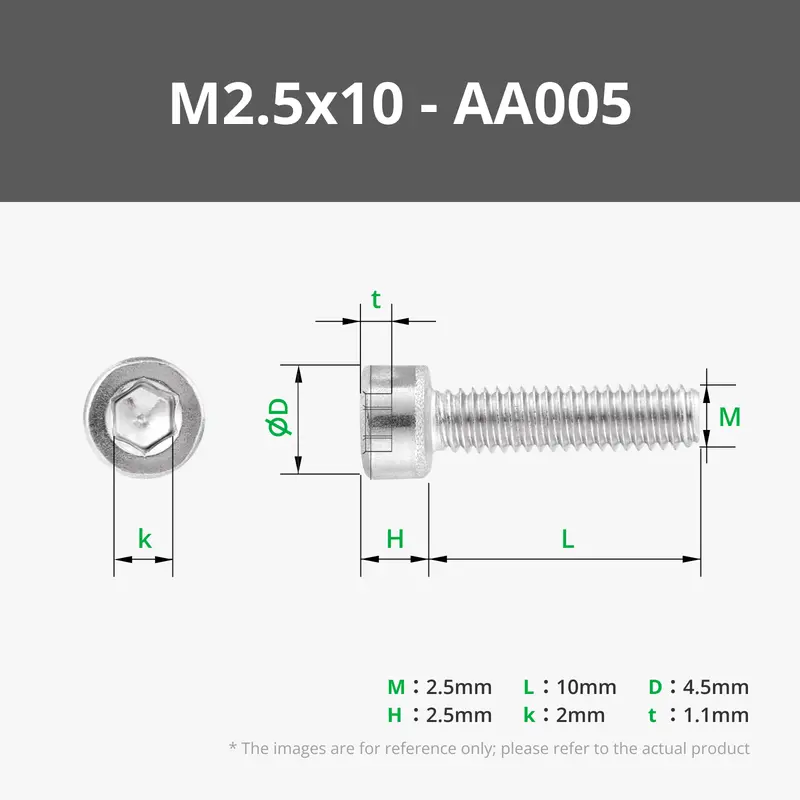

Product ID	M (mm) Nominal Diameter	P (mm) Thread Pitch	L (mm) Bolt Length	D (mm) Head Diameter	H (mm) Head Thickness	k (mm) Hexagon Across Flats	t (mm) Groove Depth	Screwdriver Bit Size
AA005	2.5	0.45	10	4.5	2.5	2	1.1	H2

* Compliant with the requirements of GB/T 70.2-2015 standard [Equivalent standards: ISO 4762, ASME/ANSI B 18.3.1M – 1986 (R1993), DIN EN ISO 12474]

Forgot the screw specs? Just tap the Screw Gauge for sorting help.

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information



Surface Treatment	No
Mounting Hole Shape	Hex socket
Screw Type	Complete thread

Material	Stainless steel
Thread Ridge Type	Metric coarse
Color	Silver

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

• Stainless Steel Socket Head Cap Machine Screws (SHCS)

• Nominal thread: M2.5~M5

• Strength grade: 4.8

• Full thread series (except M3*23)

• Type of thread: Metric coarse thread (currently all screws are metric coarse thread)

.pct_downloadContent .download_svg { width: 30px; } @media (min-width: 640px) { .pct_downloadContent .download_svg { width: 55px; } }

Downloads

2D Drawing 3D Document
