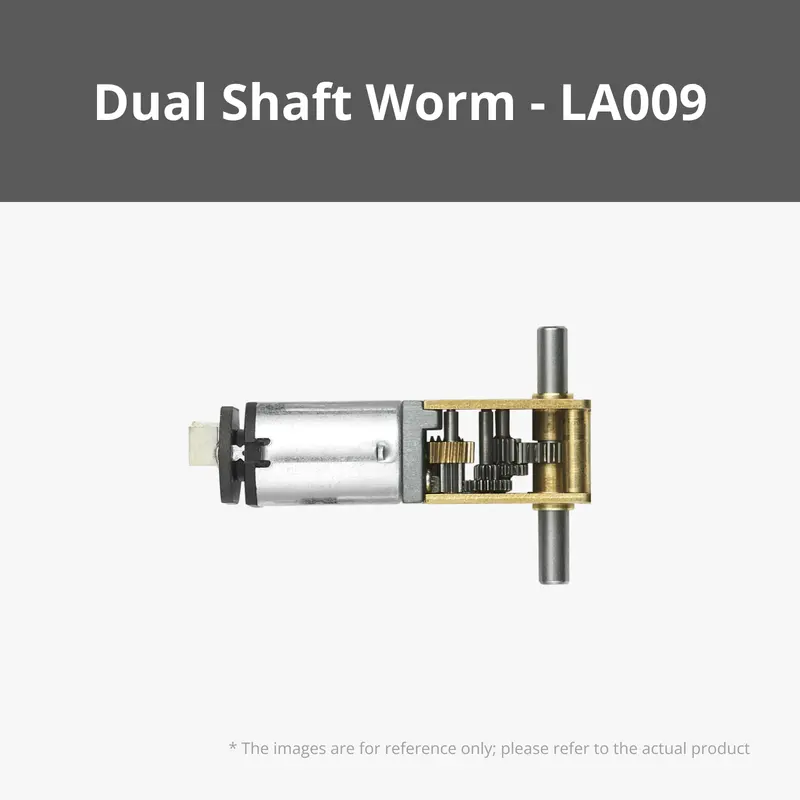

N20 Dual-Shaft Worm Gear Motor – 1Pc (Model La009)

Description

Documentation

Specification 3D Model Application Instruction

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } } @media (min-width: 1200px) { .pct.pct_mc .product-specification-table-small-padding .pct_tb .pct_td { padding: 10px 5px !important; } }

Product Specifications

Product ID	Input	Rated Voltage (V)	Operating Voltage (V)	Torque (G*CM）	No Load Speed （RPM）	Rotating Direction	Output Shaft Type
LA009	SH1.0-2P	3V	2V~4V	350	130	CCW	Dual output shaft

Introduction

The N20 Reduction Gear Motor is a low-power reduction motor with a D-shaped output shaft, suitable for applications requiring continuous rotation of objects. This motor offers three speed options, including a low-speed version (150rpm), a medium-speed (400rpm), and a high-speed (1000rpm). The motor can be connected to the Power Distribution Board (PDB) with 4 Channels using the Wire Pair with SH1.0-2PIN-5CM/10CM/20CM.

In the box

Item	Qty
N20 Dual Shaft Worm Gear Motor	1
Wire Pair with SH1.0	1

Considerations

• Please use a power supply within the working voltage range.

• Avoid immersing the motor in water or getting the motor wet.

• Use screws of the appropriate length to secure the gearbox to prevent thread slippage or damage to the gearbox from screws touching the gears.

• When using glue/adhesive to fix the motor, to prevent damage, do not let the glue/adhesive seep into the gearbox, shaft, or motor interior.

• Regularly add a small amount of lubricant/grease to the gearbox to improve its lifespan and reduce noise.
