Product Specifications

Product ID	Input	Rated Voltage (V)	Operating Voltage (V)	Torque (G*CM）	No Load Speed （RPM）	Rotating Direction

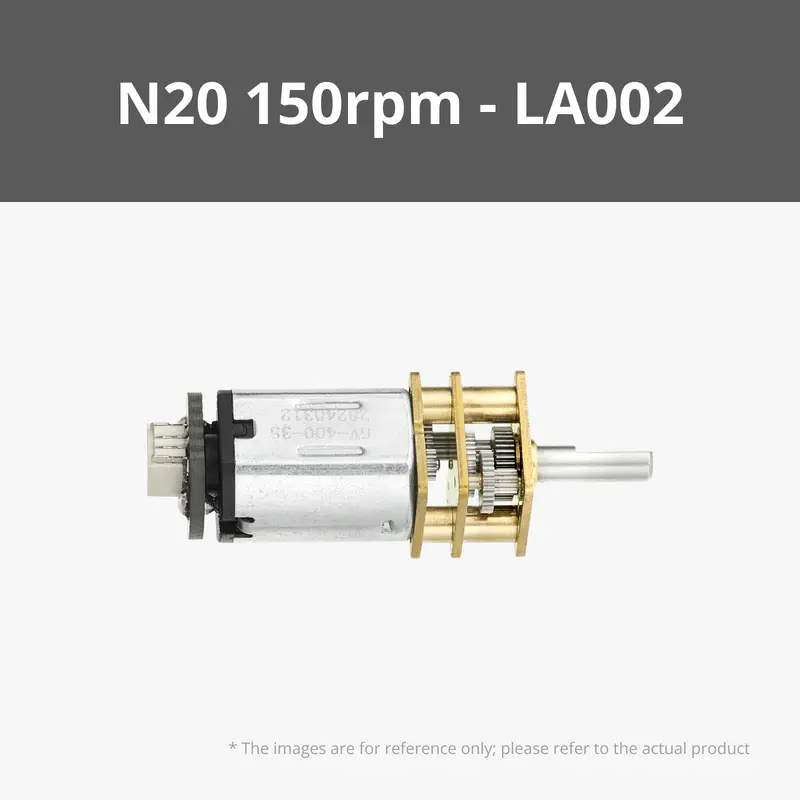

LA002	SH1.0-2P	6V	3V ~ 7V	852.6	150	CW
LA003	SH1.0-2P	6V	3V ~ 7V	350	400	CW

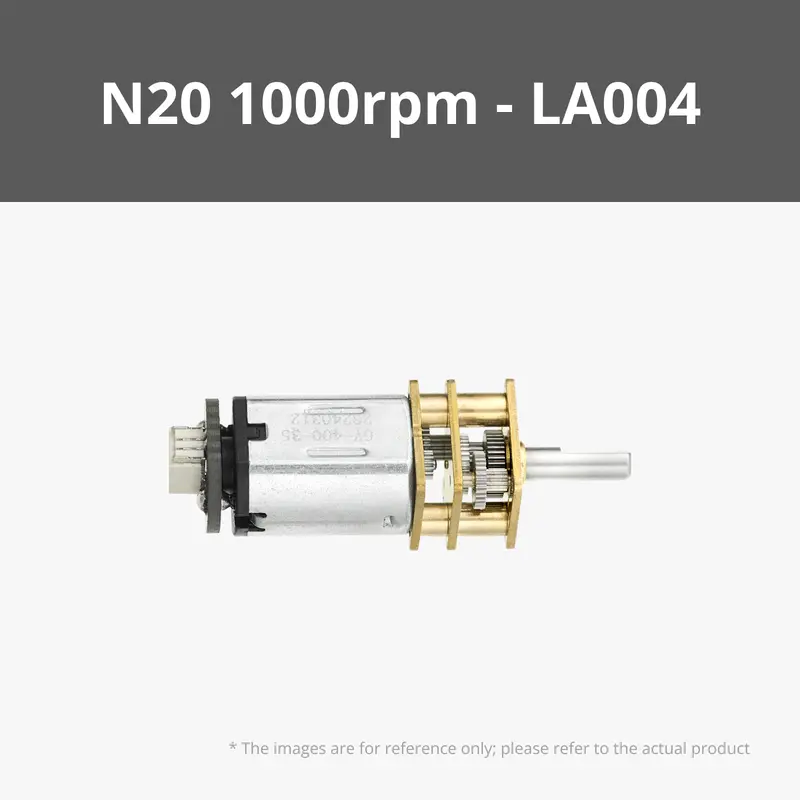

LA004	SH1.0-2P	6V	3V ~ 7V	90	1000	CW

Introduction



The N20 Reduction Gear Motor is a low-power reduction motor with a D-shaped output shaft, suitable for applications requiring continuous rotation of objects. This motor offers three speed options, including a low-speed version (150rpm), a medium-speed (400rpm), and a high-speed (1000rpm). The motor can be connected to the Power Distribution Board (PDB) with 4 Channels using the Wire Pair with SH1.0-2PIN-5CM/10CM/20CM.

In the box

Item	Qty
N20 Reduction Gear Motor	1
Wire Pair with SH1.0	1

Considerations

• Please use a power supply within the working voltage range.

• Avoid immersing the motor in water or getting the motor wet.

• Use screws of the appropriate length to secure the gearbox to prevent thread slippage or damage to the gearbox from screws touching the gears.

• When using glue/adhesive to fix the motor, to prevent damage, do not let the glue/adhesive seep into the gearbox, shaft, or motor interior.

• Regularly add a small amount of lubricant/grease to the gearbox to improve its lifespan and reduce noise.
