Sh1.0 Splitter Adapter – 1-To-2 Dual Output (2 Units)

Description

Documentation

Specifications Solid Model

*Specifications: Essential electrical and physical parameters required for proper operation.

*Solid Model: 3D digital models used to represent the actual dimensions and structural features.

Introduction

The SH1.0 to Dual SH1.0 Adapter enables a single signal or power source to be distributed to two separate devices, providing reliable signal or power transmission to both. It can also be used to tap into the signal for testing or monitoring purposes without affecting the original circuit.

Product Specifications



Product ID	Model	Connector Type	Operating Current	Size

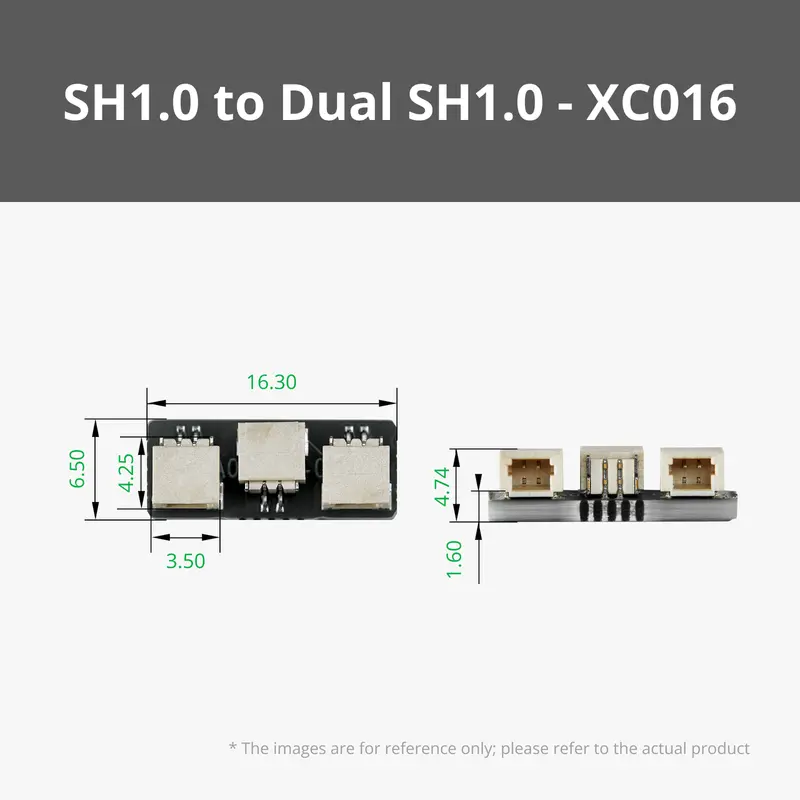

XA016	CN322	SH1.0 to Dual SH1.0	1A	16.3*6.5*4.74mm

Application

• Embedded system development: Ideal for prototyping and integrating components in embedded system projects.
• Circuit debugging and testing: Simplifies troubleshooting and ensures reliable circuit performance during testing.
• Modular device interconnections: Enables seamless connectivity between modular devices for efficient integration.
• Signal and power transmission for compact devices: Ensures stable signal and power flow in space-constrained device setups.
