12.5Mm 2-Circuit Slip Ring With Sh1.0 Connector For Rotating Electrical Interfaces

Description

Documentation

3D Model Application Instruction

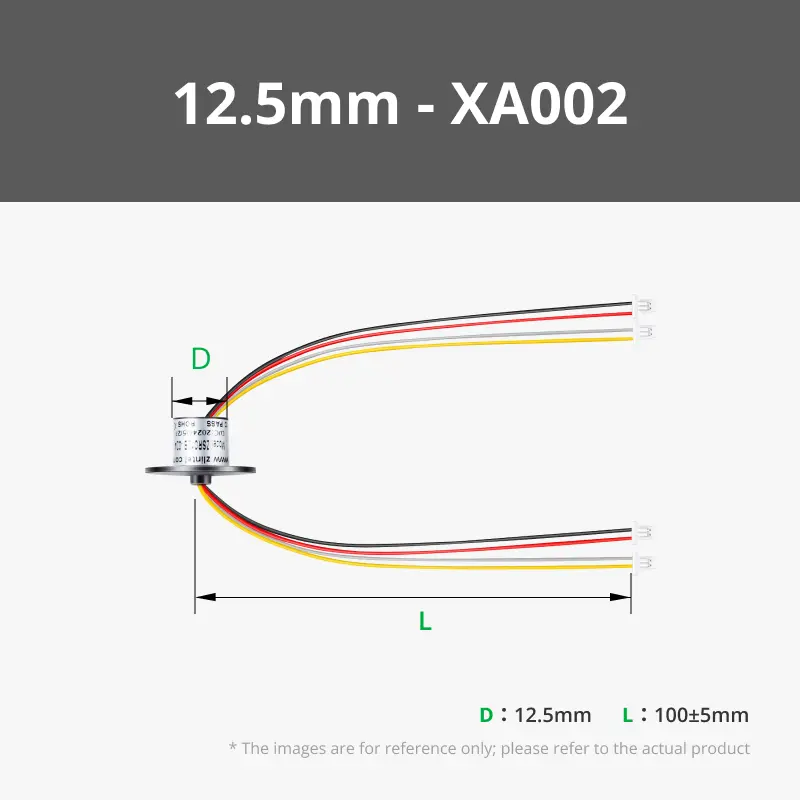

Product ID	D (mm) Outer Diameter	Channel Number	Wire Gauge
XA002	12.5	4	AWG28

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Quantity	1PCS
Rated Voltage	0~ 240 VAC/VDC
Rated Current	2A per line

Working Temperature	-10°C to +80°C
Speed Range	0 to 250 rpm
International Protection Rating	IP54

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

Precision compact internal design with 360° rotation, preventing wire tangling and breakage      |        Featuring a V-groove design with military-grade wear-resistant gold treatment             Stable, smooth, low-torque operation enables the transmission of multiple signals and power together       |      Ensures minimal resistance fluctuation and a long lifespan

Consideration

• The product’s lifespan is strongly related to operating speed, working temperature, humidity, and load conditions
• Electrical noise is closely related to operating speed, current, and voltage
