Cob Led Strip Light – High-Density Chip-On-Board Flexible Lighting Tape

Description

Documentation

Specification 3D Model

Note: The model in the video may differ slightly from the model provided in the website link.

Models Using This Part	Creators	Model Links
Augelight	user_1052904238	Augelight

The above model requires the use of a COB LED Strip Light. To complete the assembly of a full model, users need to download the model files and 3D print the remaining parts.

Product ID	L (mm) Length	A (mm)	B (mm)

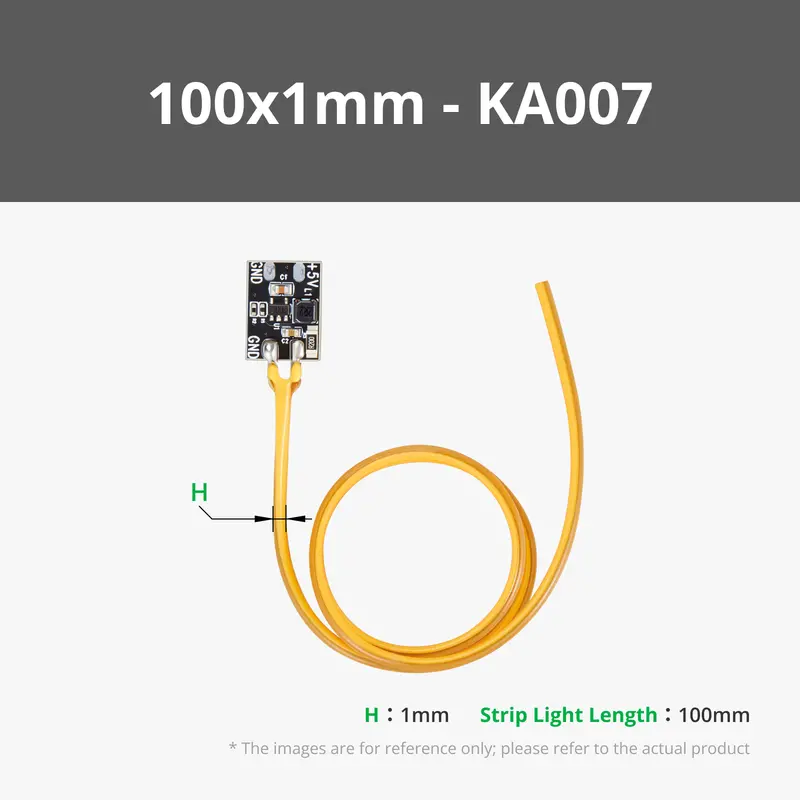

KA007	100	13.7	9.9
KA008	200	13.7	9.9

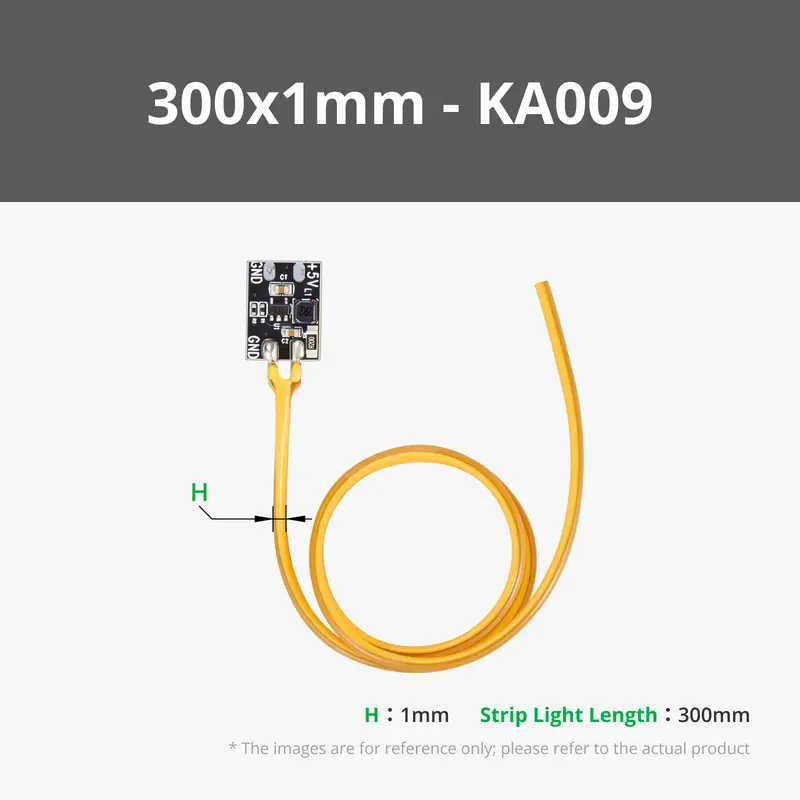

KA009	300	13.7	9.9

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Instruction

Used with the 100mm Y type PH2.0 to Dual SH1.0 Conversion Wire and the Power Distribution Board – 4 Channels, the brightness can be adjusted via the Potentiometer Board with SH1.0 Connector.

Basic Information

Voltage (V)	5V DC
Light Color	White
Strip Light Material	Silicone

LED Board Size (mm)	13.7×9.9
Strip Light Color	Yellow
Quantity	1 pcs

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Considerations

• Ensure the COB LED Strip Light is connected to the correct power supply. Using an incorrect power supply can damage the strip.
• Proper heat management is crucial. Use heat sinks or other cooling methods to prevent overheating, which can reduce brightness and cause LED failure.
• Ensure all electrical connections are secure and properly insulated. Regularly inspect connections to prevent short circuits or electrical shocks.
