M2 Stainless Steel Flat Head Cap Screws

Description



Documentation

Specification 3D Model

.pct_downloadContent .download_svg { width: 30px; } @media (min-width: 640px) { .pct_downloadContent .download_svg { width: 55px; } }

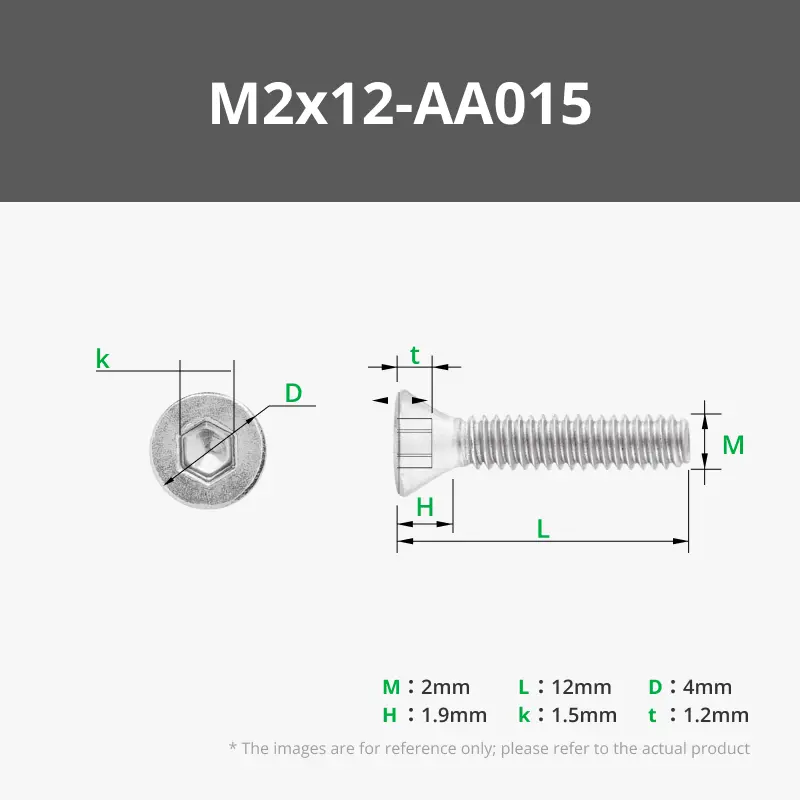

Product ID	M (mm) Nominal Diameter	P (mm) Thread Pitch	L (mm) Bolt Length	D (mm) Head Diameter	H (mm) Head Thickness	k (mm) Hexagon Across Flats	t (mm) Groove Depth	Screwdriver Bit Size
AA009	2	0.4	6	4	1.9	1.5	1.2	H1.5
AA011	2	0.4	8	4	1.9	1.5	1.2	H1.5
AA007	2	0.4	10	4	1.9	1.5	1.2	H1.5
AA015	2	0.4	12	4	1.9	1.5	1.2	H1.5
AA017	2	0.4	14	4	1.9	1.5	1.2	H1.5

* Compliant with the requirements of GB/T 70.2-2015 standard [Equivalent standards: ISO 7380-1, DIN EN ISO(-1)]

Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Surface Treatment	No
Mounting Hole Shape	Hex socket
Screw Type	Complete thread

Material	Stainless steel
Thread Ridge Type	Metric coarse
Color	Silver

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

• Stainless Steel Flat Head Cap Machine Screws (FHCS)

• Nominal thread: M2.5~M5

• Strength grade: 4.8

• Type of thread: Metric coarse thread (currently all screws are metric coarse thread)

• Full thread series (except M3*23)
