M2 Standard Flat Head Cap Screws

Description

Documentation

Specification 3D Model

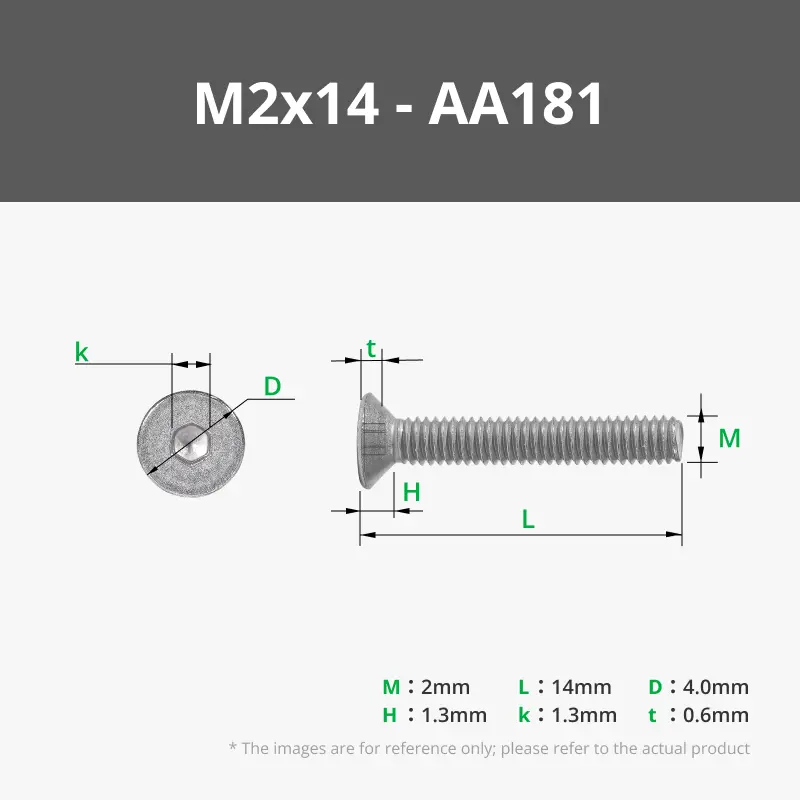

Product ID	L (mm) Bolt Length	D (mm) Head Diameter	H (mm) Head Thickness	k (mm) Hexagon Across Flats	t (mm) Groove Depth	Screwdriver Bit Size
AA178	4	4	1.3	1.3	0.6	H1.3
AA179	5	4	1.3	1.3	0.6	H1.3
AA071	6	4	1.3	1.3	0.6	H1.3
AA072	8	4	1.3	1.3	0.6	H1.3
AA180	10	4	1.3	1.3	0.6	H1.3
AA073	12	4	1.3	1.3	0.6	H1.3
AA181	14	4	1.3	1.3	0.6	H1.3
AA074	16	4	1.3	1.3	0.6	H1.3
AA182	18	4	1.3	1.3	0.6	H1.3
AA075	20	4	1.3	1.3	0.6	H1.3
AA076	25	4	1.3	1.3	0.6	H1.3
AA077	30	4	1.3	1.3	0.6	H1.3

*Compliant with the requirements of GB/T 70.3-2008 standard [Equivalent standards:  ISO 10642-2019, DIN EN ISO 10642-2013]

Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.

.pct_hardware-tableList-t-icpc { padding: ‘0 20px’ } .pct_hardware-tableList { width: 100%; row-gap: 15px !important; column-gap: 15px !important; } .pct_hardware-tableList .pct_ic-p { overflow: hidden; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { border-color: #ADADAD; } @media (min-width: 640px) { .pct_hardware-tableList-t-icpc { padding: 0px !important } .pct_hardware-tableList { width: 100%; row-gap: 15px; column-gap: 15px; } .pct_hardware-tableList .pct_st-tbc .pct_tb .pct_td { height: 50px; } }

Basic Information

Surface Treatment	No
Mounting Hole Shape	Hex socket
Screw Type	Complete thread

Material	Carbon steel
Thread Ridge Type	Metric coarse
Color	Silver

.pct_productFeatureList { display: flex; justify-content: flex-start; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 5px; } .pct_productFeatureList li { padding: 0; } @media (min-width: 640px) { .pct_productFeatureList { display: flex; justify-content: center; align-items: center; flex-wrap: wrap; column-gap: 50px; row-gap: 0px; } }

Product Feature

• Carbon Steel M2 Flat Head Cap Machine Screws (FHCS)

• Nominal thread: M2~M3

• Strength grade: 4.8

• Full thread series

• Type of thread: Metric coarse thread
